Opto interruptor, led y buzzer - Arduino / Fritzing

Con está configuración, al cortarse el flujo del láser del opto interruptor, se enciende el led e inicia la música.

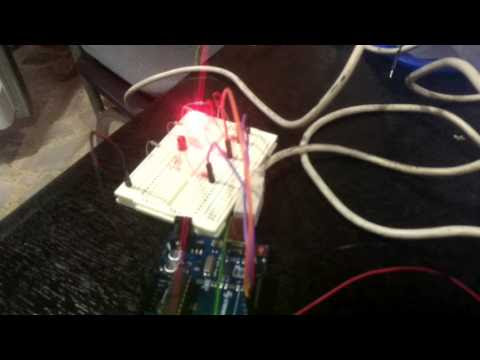

Opción A

 Llamando la opción sirena y configurando tono, frecuencia y duración de cada nota..

La melodía de piratas del caribe fue obtenida en No sin mi Arduino.

Fritzing

Código

[code]
const int Sensor = 12; // numero pin del sensor
const int Led = 8; // numero pin del led
const int audio = 9; // numero pin del zumbador
int estadoSensor = 0; // variable para leer y guardar el estado del sensor
void setup() {

pinMode(Led, OUTPUT); // inicializa pin led como salida
pinMode(Sensor, INPUT); // inicializa pin sensor como entrada
 pinMode(audio, OUTPUT); // inicializa pin buzzer led como salida
}
void loop(){
 estadoSensor = digitalRead(Sensor); // lee estado del sensor
 if (estadoSensor == HIGH) { // HIGH, sensor activado
digitalWrite(Led, LOW);
}
else {
digitalWrite(Led, HIGH); // LOW, sensor desactivado
sirena();}
}

void sirena(){
tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,200);
  delay(200);
  tone(9,293.66,100);
  delay(100);
  tone(9,293.66,100);
  delay(100);
  tone(9,440,100);
  delay(100);
  tone(9,523.25,100);
  delay(100);
  tone(9,587.33,100);
  delay(200);
  tone(9,587.33,100);
  delay(200);
  tone(9,587.33,100);
  delay(100);
  tone(9,659.25,100);
  delay(100);
  tone(9,698.45,100);
  delay(200);
  tone(9,698.45,100);
  delay(200);
  tone(9,698.45,100);
  delay(100);
  tone(9,783.99,100);
  delay(100);
  tone(9,659.25,100);
  delay(200);
  tone(9,659.25,100);
  delay(200);
  tone(9,587.33,100);
  delay(100);
  tone(9,523.25,100);
  delay(100);
  tone(9,523.25,100);
  delay(100);
  tone(9,587.33,100);
  delay(300);
  tone(9,440,100);
  delay(100);
  tone(9,523.25,100);
  delay(100);
  tone(9,587.33,100);
  delay(200);
  tone(9,587.33,100);
  delay(200);
  tone(9,587.33,100);
  delay(100);
  tone(9,659.25,100);
  delay(100);
  tone(9,698.45,100);
  delay(200);
  tone(9,698.45,100);
  delay(200);
  tone(9,698.45,100);
  delay(100);
  tone(9,783.99,100);
  delay(100);
  tone(9,659.25,100);
  delay(200);
  tone(9,659.25,100);
  delay(200);
  tone(9,587.33,100);
  delay(100);
  tone(9,523.25,100);
  delay(100);
  tone(9,587.33,100);
  delay(400);
  tone(9,440,100);
  delay(100);
  tone(9,523.25,100);
  delay(100);
  tone(9,587.33,100);
  delay(200);
  tone(9,587.33,100);
  delay(200);
  tone(9,587.33,100);
  delay(100);
  tone(9,698.45,100);
  delay(100);
  tone(9,783.99,100);
  delay(200);
  tone(9,783.99,100);
  delay(200);
  tone(9,783.99,100);
  delay(100);
  tone(9,880,100);
  delay(100);
  tone(9,932.33,100);
  delay(200);
  tone(9,932.33,100);
  delay(200);
  tone(9,880,100);
  delay(100);
  tone(9,783.99,100);
  delay(100);
  tone(9,880,100);
  delay(100);
  tone(9,587.33,100);
  delay(300);
  tone(9,587.33,100);
  delay(100);
  tone(9,659.25,100);
  delay(100);
  tone(9,698.45,100);
  delay(200);
  tone(9,698.45,100);
  delay(200);
  tone(9,783.99,100);
  delay(200);
  tone(9,880,100);
  delay(100);
  tone(9,587.33,100);
  delay(300);
  tone(9,587.33,100);
  delay(100);
  tone(9,698.45,100);
  delay(100);
  tone(9,659.25,100);
  delay(200);
  tone(9,659.25,100);
  delay(200);
  tone(9,698.45,100);
  delay(100);
  tone(9,587.33,100);
  delay(100);
  tone(9,659.25,100);
  delay(400);
  tone(9,880,100);
  delay(100);
  tone(9,1046.50,100);
  delay(100);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1318.51,100);
  delay(100);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1567.98,100);
  delay(100);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1046.50,100);
  delay(100);
  tone(9,1046.50,100);
  delay(100);
  tone(9,1174.66,100);
  delay(300);
  tone(9,880,100);
  delay(100);
  tone(9,1046.50,100);
  delay(100);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1318.51,100);
  delay(100);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1567.98,100);
  delay(100);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1046.50,100);
  delay(100);
  tone(9,1174.66,100);
  delay(400);
  tone(9,880,100);
  delay(100);
  tone(9,1046.50,100);
  delay(100);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1567.98,100);
  delay(200);
  tone(9,1567.98,100);
  delay(200);
  tone(9,1567.98,100);
  delay(100);
  tone(9,1760,100);
  delay(100);
  tone(9,1864.66,100);
  delay(200);
  tone(9,1864.66,100);
  delay(200);
  tone(9,1760,100);
  delay(100);
  tone(9,1567.98,100);
  delay(100);
  tone(9,1760,100);
  delay(100);
  tone(9,1174.66,100);
  delay(300);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1318.51,100);
  delay(100);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1567.98,100);
  delay(200);
  tone(9,1760,100);
  delay(100);
  tone(9,1174.66,100);
  delay(300);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1174.66,100);
  delay(100);
  tone(9,1108.73,100);
  delay(100);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1174.66,100);
  delay(200);
  tone(9,1318.51,100);
  delay(200);
  tone(9,1396.91,100);
  delay(200);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1567.98,100);
  delay(200);
  tone(9,1760,300);
  delay(400);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1174.66,100);
  delay(100);
  tone(9,880,300);
  delay(600);
  tone(9,1864.66,300);
  delay(400);
  tone(9,1396.91,100);
  delay(100);
  tone(9,1174.66,100);
  delay(100);
  tone(9,932.33,300);
  delay(600);
  tone(9,587.33,100);
  delay(100);
  tone(9,440,100);
  delay(200);
  tone(9,587.33,100);
  delay(300);
  tone(9,554.36,100);
  delay(400);
  tone(9,1567.98,100);
  delay(100);
  tone(9,1567.98,100);
  delay(100);
}

[/code]

Opción B

Cargando la librería en una subcarpeta mediante asignación por notas e incorporación de led rojo parpadeante cuando no hay música en reproducción y encendido de led verde cuando sí.

Melodía del padrino tomada de Garage Lab.

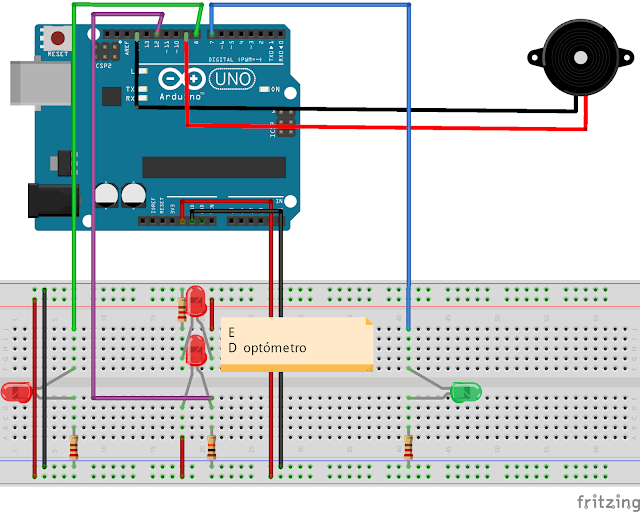

Fritzing

[code]
  #include "pitches.h"
    // Constantes
    const int pinSensor = 12;     // Número del pin del sensor
    const int pinAudio  =  9;     // Número de pin del sonido
    const int Led        = 8;     // numero pin del led
    const int greenLed   = 7;     // numero pin del led

    // Variables
    int valueSensor = 0;         // Para leer y guardar el valor del sensor

    int melody[] = {   // Tonalidad de las notas
  NOTE_E4,NOTE_F4,NOTE_F4,NOTE_F4,NOTE_F4,NOTE_E4,NOTE_E4,NOTE_E4,
  NOTE_E4,NOTE_G4,NOTE_G4,NOTE_G4,NOTE_G4,NOTE_E4,NOTE_E4,NOTE_E4,
  NOTE_E4,NOTE_F4,NOTE_F4,NOTE_F4,NOTE_F4,NOTE_E4,NOTE_E4,NOTE_E4,
  NOTE_E4,NOTE_G4,NOTE_G4,NOTE_G4,NOTE_G4,NOTE_E4,NOTE_E4,NOTE_E4,
  NOTE_DS5,NOTE_D5,NOTE_B4,NOTE_A4,NOTE_B4,
  NOTE_E4,NOTE_G4,NOTE_DS5,NOTE_D5,NOTE_G4,NOTE_B4,
  NOTE_B4,NOTE_FS5,NOTE_F5,NOTE_B4,NOTE_D5,NOTE_AS5,
  NOTE_A5,NOTE_F5,NOTE_A5,NOTE_DS6,NOTE_D6 };

    int durationNotes[] = {   // Duración de las notas
  8,16,16,8,4,8,8,8,
  8,16,16,8,4,8,8,8,
  8,16,16,8,4,8,8,8,
  8,16,16,8,4,8,8,8,
  8,2,8,8,1,
  8,4,8,4,8,8,
  8,8,4,8,4,8,
  4,8,4,8,3 };

     void setup() {
       // Pin de audio como de salida
       pinMode(pinAudio, OUTPUT);
       // inicializa pin led como salida
       pinMode(Led, OUTPUT);
       pinMode(pinAudio, OUTPUT);
       // inicializa pin led como salida
       pinMode(greenLed, OUTPUT);
       // Pin del sensor como de entrada
       pinMode(pinSensor, INPUT);

     }

     void loop(){
     // Lectura del estado del sensor (valor) y guardado en la variable valueSensor
     valueSensor = digitalRead(pinSensor);
     // IF
     if (valueSensor == HIGH) {
       // Sensor HIGH = a pinAudio y Led HIGH
      digitalWrite(greenLed, HIGH);
      digitalWrite(pinAudio, HIGH);
      for (int thisNote = 0; thisNote < 54; thisNote++) {

    // segundos / duración de la nota
    //ej:  negra = 1000 / 4, octavo = 1000/8, etc.
    int noteDuration = 1000 / durationNotes[thisNote];
    tone(9, melody[thisNote], noteDuration);


   // Espaciado entre notas
   int pausaEntreNotas = noteDuration * 1.40;
    delay(pausaEntreNotas);
    // parar la melodía
    noTone(9);
  }
       }
     else {
       // LOW = a pinAudio y Led LOW
      digitalWrite(pinAudio, LOW);
      digitalWrite(Led, HIGH);
      delay(1000);
      digitalWrite(Led, LOW);
      digitalWrite(greenLed, LOW);
      delay(1000);
       }

     }
[/code]
